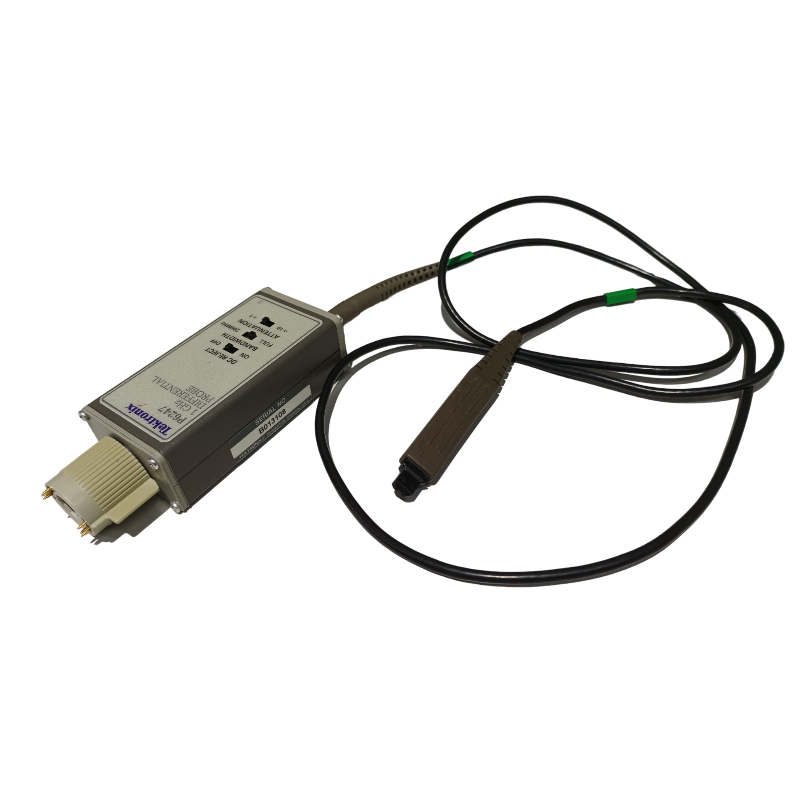

Tektronix P6247, Differential Probe, 1GHz

Unit is tested and in good working and cosmetic condition. Please see pictures!

Reference pictures only, please ask for unit’s specific pictures!

Three (3) pc available!

Price is for one (1) unit.

Condition: Tested good
Serial number:  B013658, B013108, B012851

Need calibration for the unit? Please contact us and we'll send you a affordable calibration quote!

General description (Retrieved 10/2024, Tektronix)
Note:  Unit specific features depend on installed options. Please see unit pictures for options!

P6247 key performance specifications

• ≥1.0 GHz bandwidth (guaranteed)

Key features

• Low input capacitance: <1 pF differential

• Probe input connector: two standard 0.025 in./0.63 mm (0.1 in. center) square pin receptacle (female)

• Electrostatic discharge tolerant (IEC 801-2)

• For use with oscilloscopes, spectrum analyzers, or network analyzers

• >60 dB (1000:1) Common Mode Rejection Ratio (CMRR)

• Small probe head allows easy probing of SMDs

Connectivity

• Connects to TekProbe® BNC interface on TDS Series oscilloscopes or other instruments using 1103 TekProbe® Power Supply

Applications

• Communications (Gigabit ethernet, IEEE-1394, fibre channel)

• Semiconductor characterization (RAMBUS)

• Disk drive read channel design

• Communication pulse shape compliance

• Jitter, crosstalk, and BERT measurements

• Location of ground bounce

P6248, P6247, and P6246 Differential Probes

The P6248, P6247, and P6246 Differential Probes are ideal for design verification of disk drive read, channel electronics, and timing analysis for troubleshooting ground-bounce problems associated with high-speed logic. They can also be used for pulse shape or crosstalk compliance testing of high-speed communication signals.

Please contact us for the unit's datasheet!
