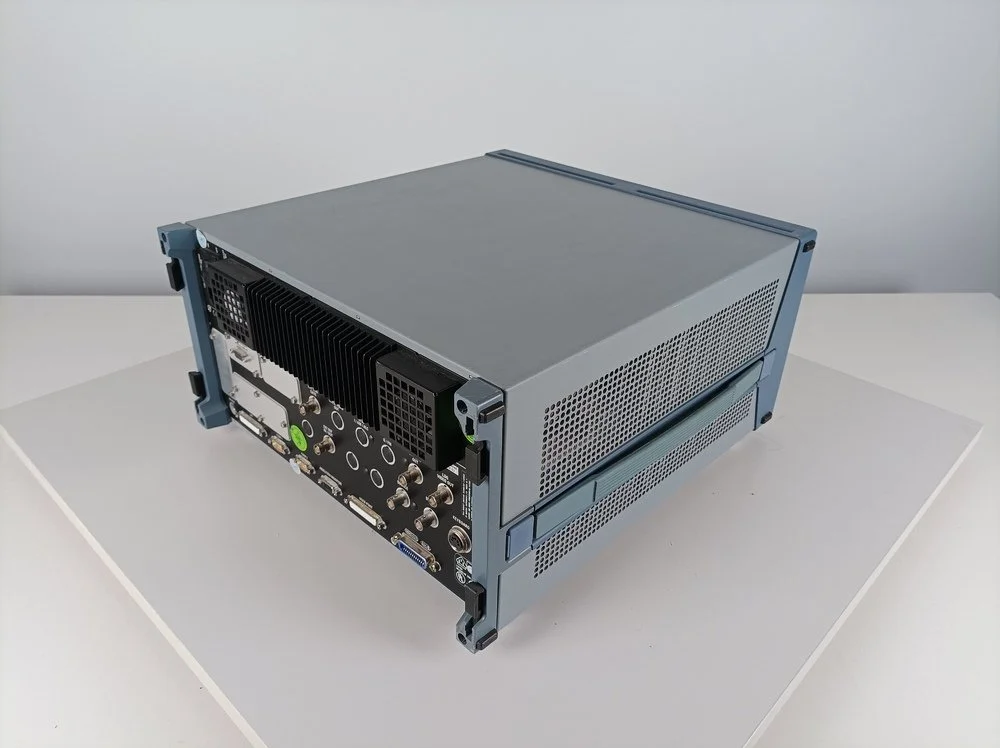

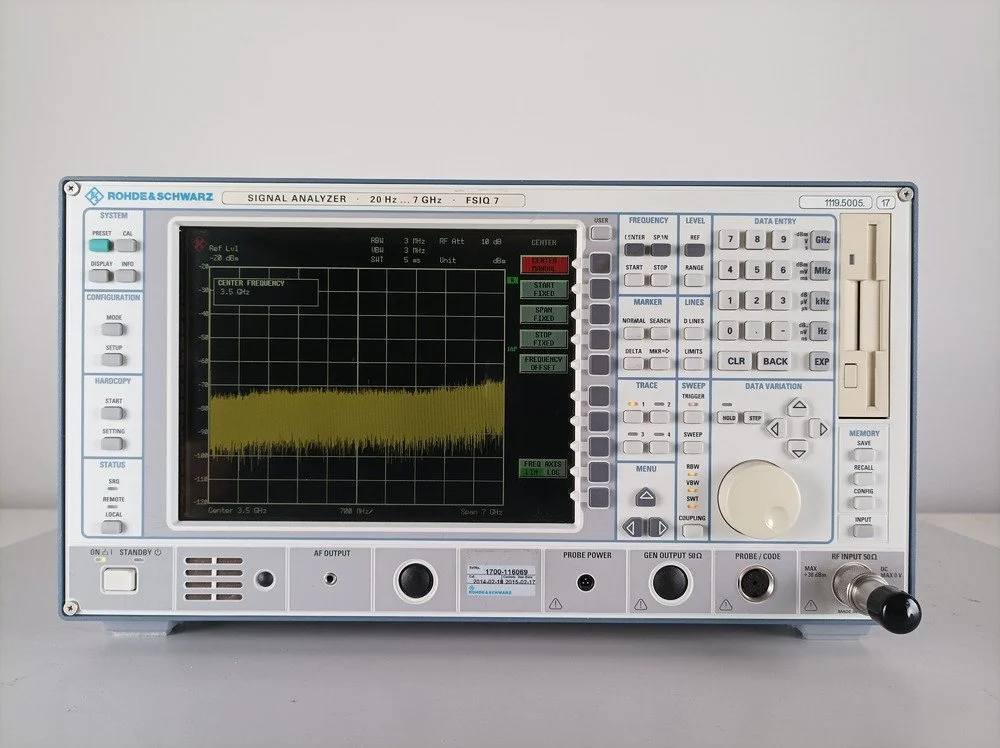

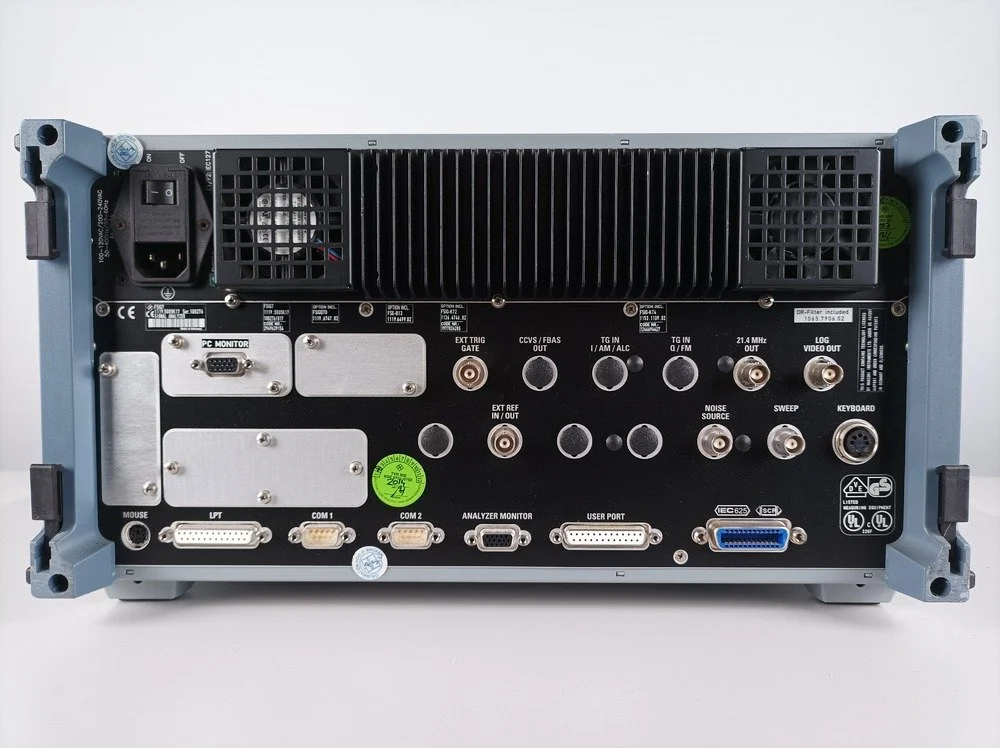

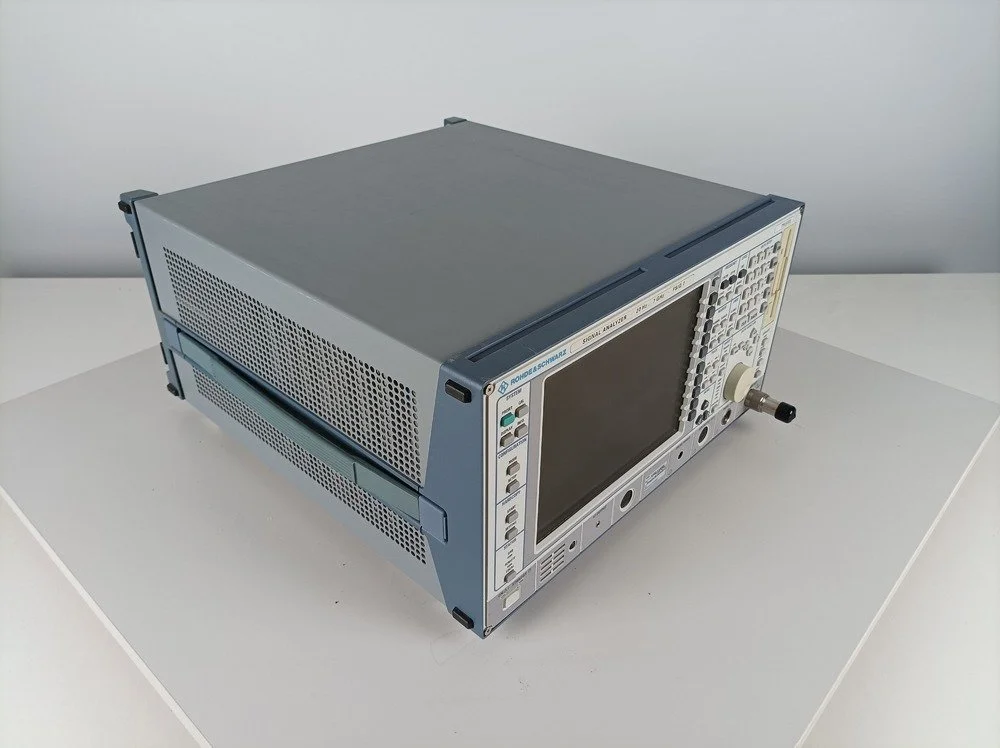

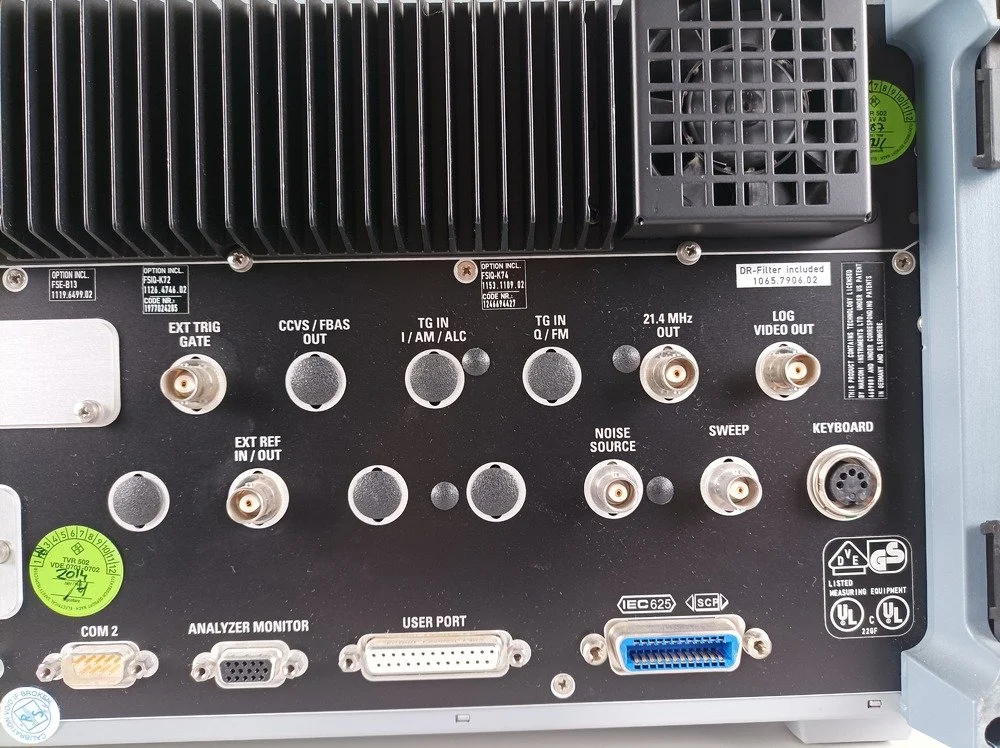

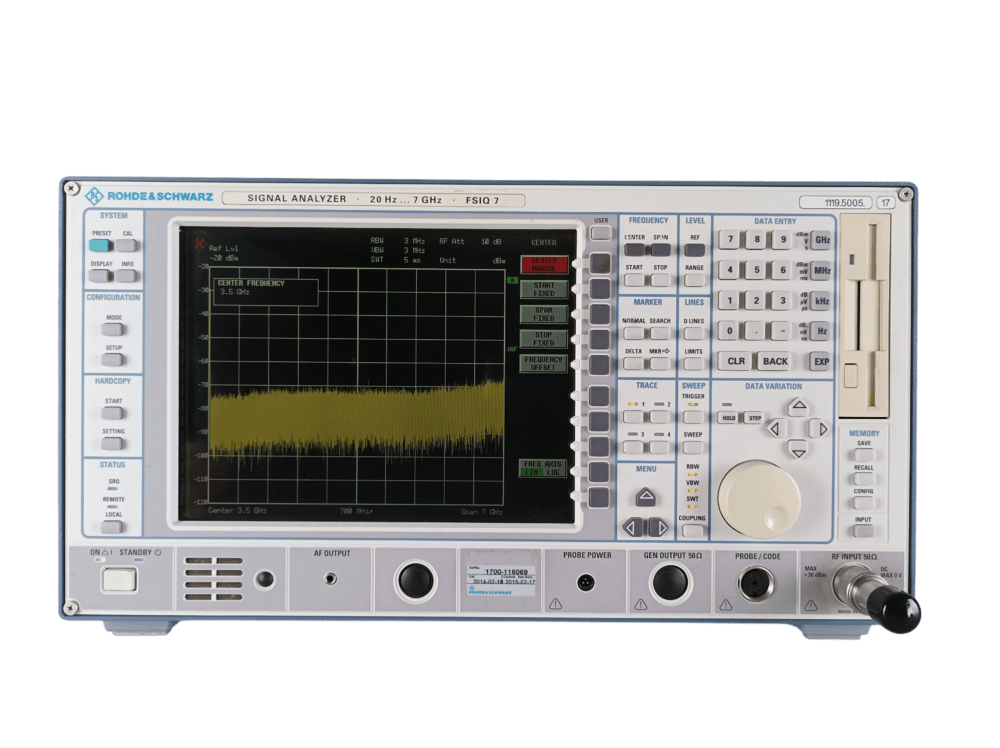

Rohde & Schwarz FSIQ 7, Signal Analyzer 20Hz-7GHz

Unit is tested and in good working and cosmetic condition. Please see pictures!

Test pictures upon request.

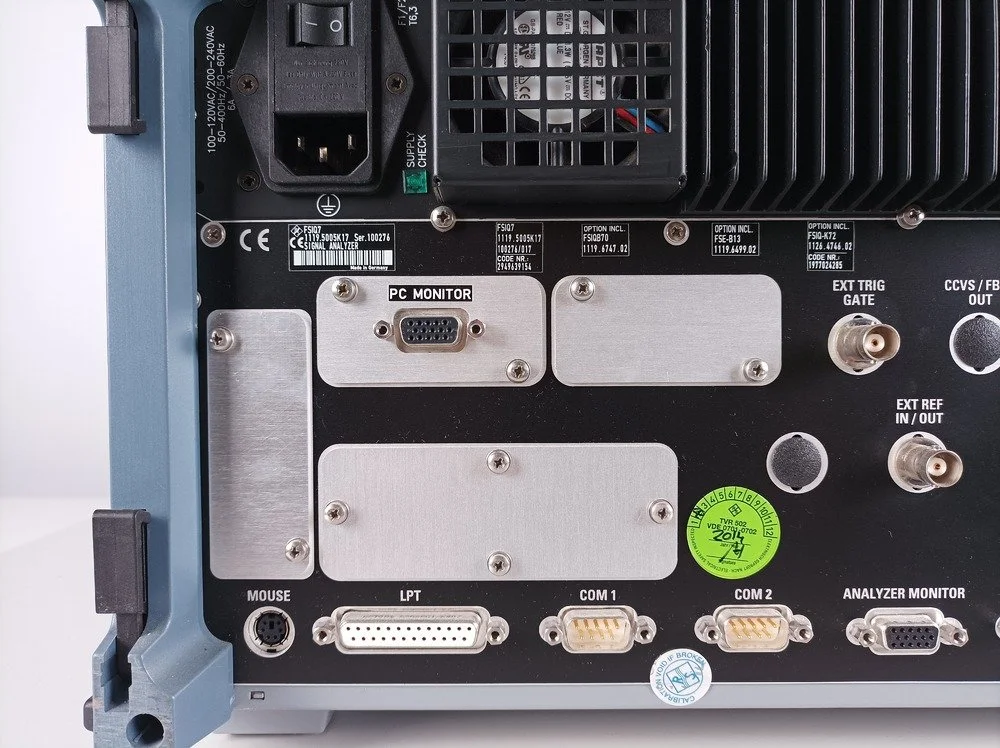

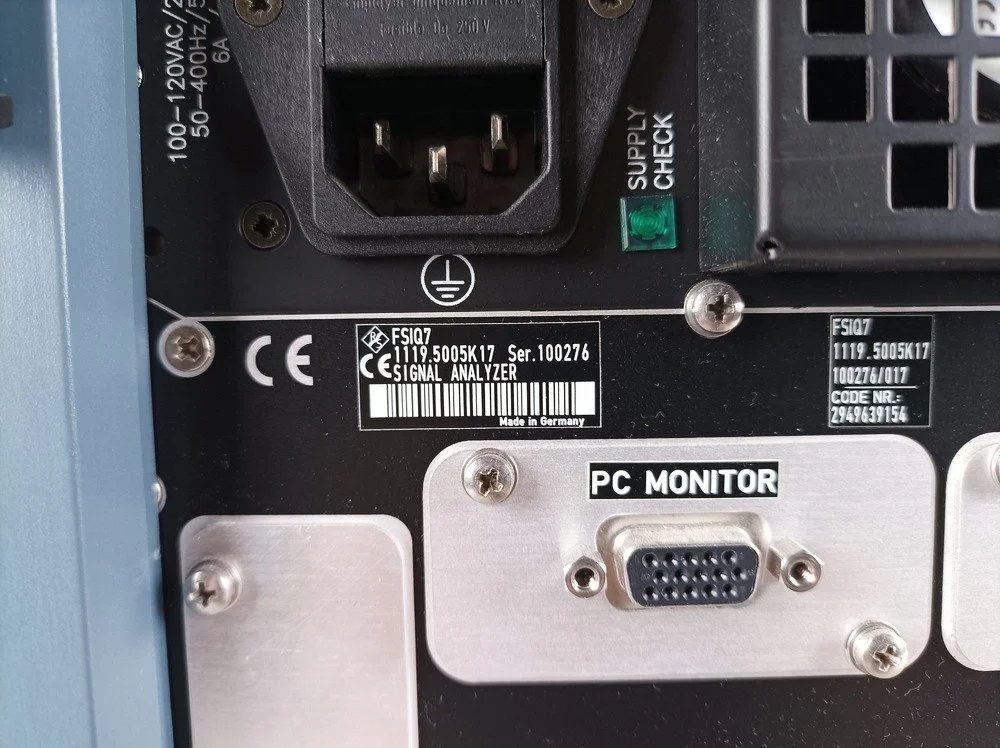

Serial number: 100276

Need calibration for the unit? Please contact us and we'll send you a affordable calibration quote!

General description (Retrieved Rohde & Schwarz 2026)

Features only dependent on installed options. Please see unit pictures for options!

• Spectrum analysis with ultrawide dynamic range for sophisticated ACPR measurements: NF = 15 dB/ TOI = +20 dBm (FSIQ7)

• Integrated vector signal analyzer for universal analysis of digital and analog modulated signals BPSK to 16QAM, (G)MSK, AM, FM, PM

• Vector signal analyzer for W-CDMA/3GPP

• Symbol rate up to 6.4 Msymbol/s

• High-speed synthesizer with 5 ms sweep time for FULL SPAN (FSIQ 3/7)

• High display update rate up to 25 sweeps/s

Key Facts

FSIQ provides in a single unit comprehensive and easy-to-use measurement functions in the:

• Frequency domain

• Time domain

• Modulation domain

FSIQ - signal analyzer for the 3rd mobile radio generation

• High measurement speed for use in development and production

• Versatile test routines – convenient measurements

Applications for Mobile Radio - digital and analog

Features & Benefits

3 models and frequency ranges

1. FSIQ 3: 20 Hz to 3.5 GHz

2. FSIQ 7: 20 Hz to 7 GHz

3. FSIQ 26: 20 Hz to 27 GHz

• Resolution bandwidth 1 Hz to 10 MHz in 1/2/3/5 steps

• 5-pole resolution filters with high selectivity

• FFT filter with 1 Hz to 1 kHz RBW for fast measurements

• Displayed average noise floor typ. -150 dBm in 10 Hz bandwidth

• Third-order intercept +20 dBm with FSIQ 7, +22dBm with FSIQ26

• Phase noise -150 dBc/Hz at 5 MHz offset

• 75 dB ACPR dynamic range for W-CDMA (4.096 MHz integration BW)

• Total measurement uncertainty <1 dB up to 2.2 GHz, <1.5 dB up to 7 GHz

• RMS detector for high-precision power measurements irrespective of waveform

• Fast spectrum analysis with 5 ms sweep time for full span (FSIQ3/7)

• Fast time domain analysis with 1 µs zero span sweep time

• Integrated broadband vector signal analyzer for all main mobile radio standards and modulation modes with versatile result display: I and Q signal, magnitude and phase, vector and constellation diagrams, spreadsheets with numeric evaluation of modulation errors and demodulated bit sequence

Please contact us for the unit's datasheet!
