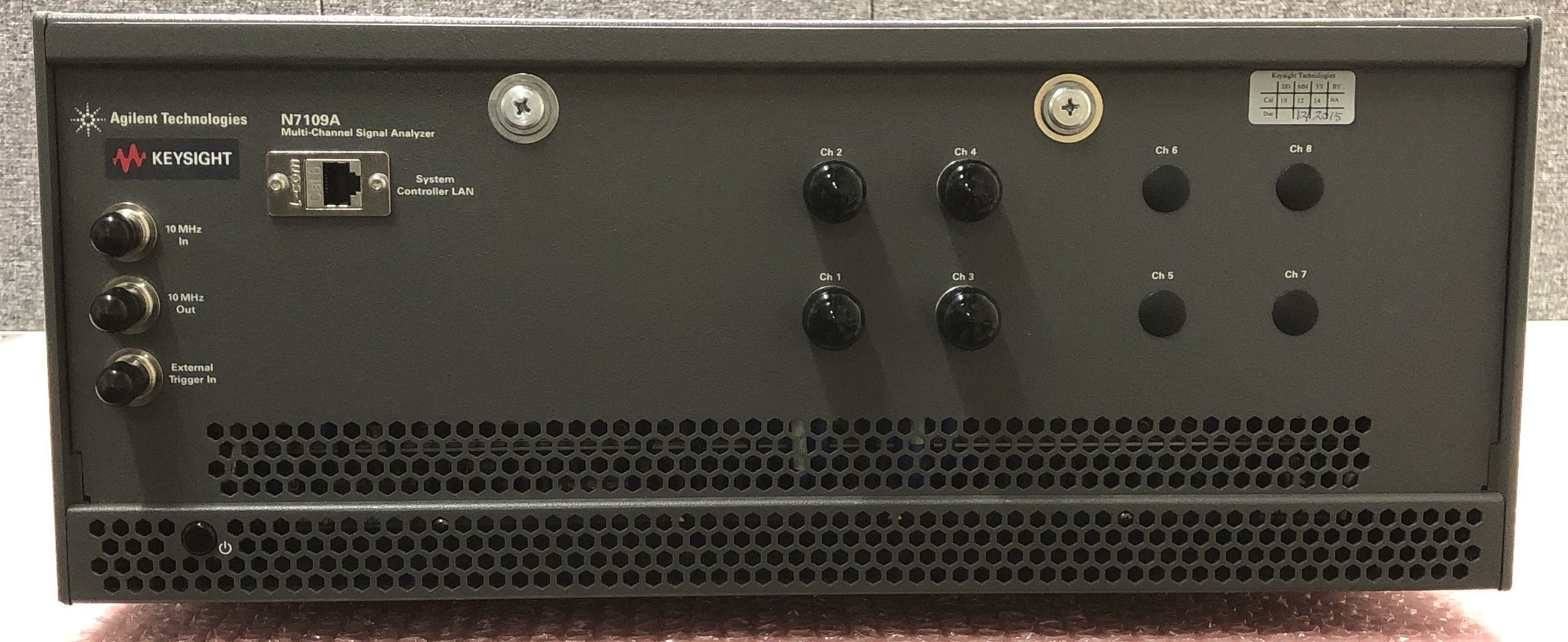

Keysight N7109A Multi-Channel Signal Analyzer, 4-Channel

Unit is in very good both working and cosmetic condition. Please see pictures!

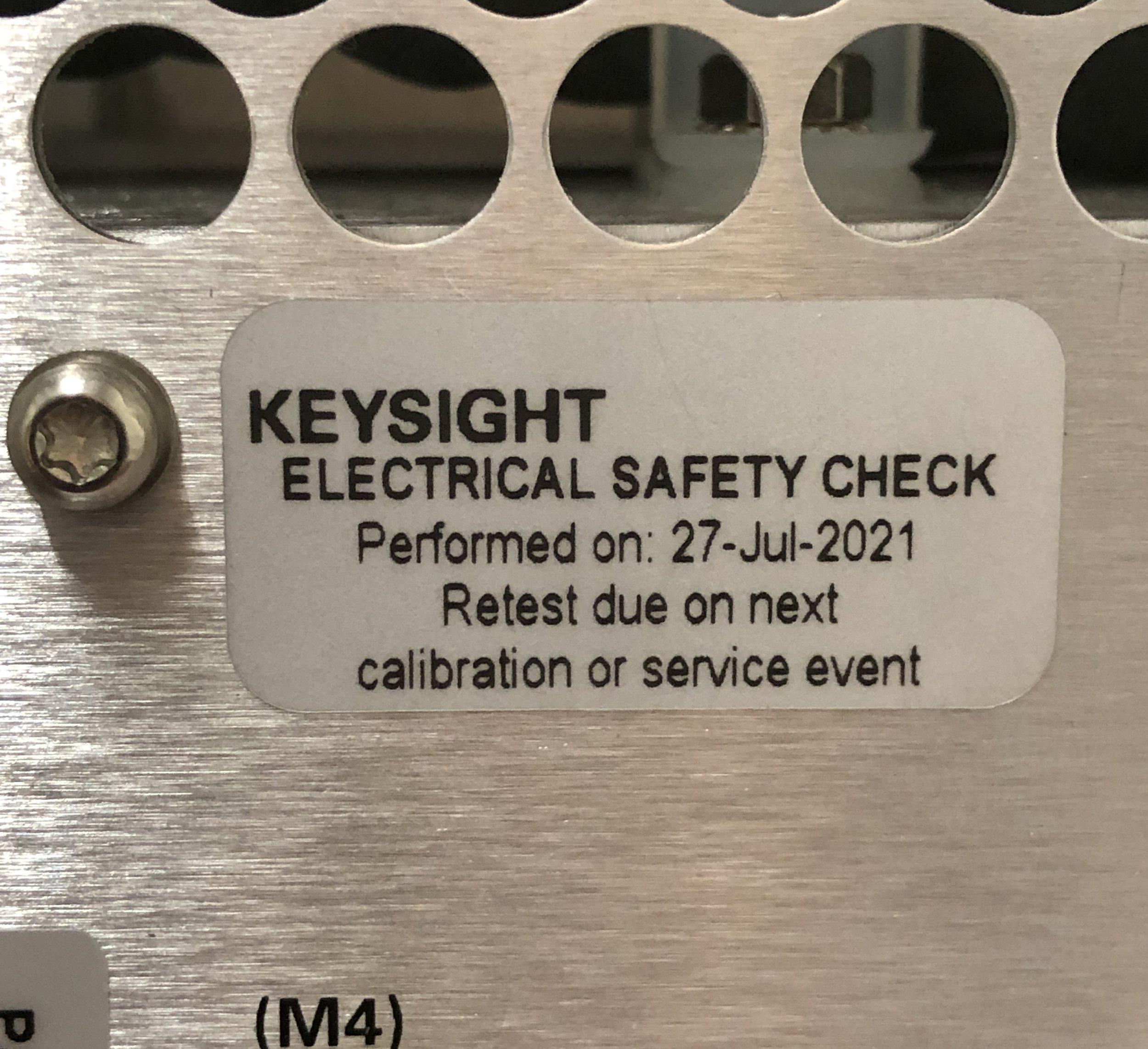

Keysight Electrical Safety Check performed on: 27.7.2021

Generic description (Took from manufacturer’s webpage)

Features only dependent on installed options. Please see unit pictures for options!

• The N7109A is a 2-, 4- or 8-ch RF signal analyzer that leverages the multi-channel and MIMO measurement capabilities of the industry-leading Keysight 89600 VSA software.

• The N7109A enables fast, informative measurements of WLAN, WiMAX and LTE devices that range from 2x2 to 4x4 to 8x8 channels

• The N7109A is implemented in a compact modular measurement platform.

• You can configure a system with one, two or four N7130A two-channel receiver modules that provide 40 MHz analysis bandwidth from 20 MHz to 6 GHz.

• Each channel includes a built-in preamp and multiple fixed pre-selectors, which enable and optimize off-the-air measurements.

• Additionally, each channel can be tuned independently to measure multiple Component Carriers for LTE-Advanced Carrier Aggregation, including MIMO carriers, or to simultaneously measure uplink/downlink signals.

• Processing power comes from the N7140A CPU module and the N7145A FPGA processing module.

• These combine to deliver onboard data reduction, fast measurements and, with the Gigabit Ethernet PC link, rapid data transfers.

• This all fits into a 19-inch N7125A mainframe that’s rack mountable and just 4U high.

• We also include a front cover that simplifies signal connections and provides additional RF shielding.

Features

• Available in 2-, 4-, and 8-channel configurations

• Phase synchronous tuning for MIMO measurements up to 8-channels

• Independent channel tuning for LTE-Advanced Carrier Aggregation and simultaneous uplink and downlink measurements

• Analysis bandwidth: Wide range of choices with 40 MHz maximum

• Error vector magnitude: Better than -43 dBm to -47 dBm depending on signal types

• Displayed average noise level (DANL): -158 dBm/Hz

• Third-order intermodulation (TOI) distortion: +12 dBm

• Third-order dynamic range: <-70 dBc

Serial Number: US53480166
